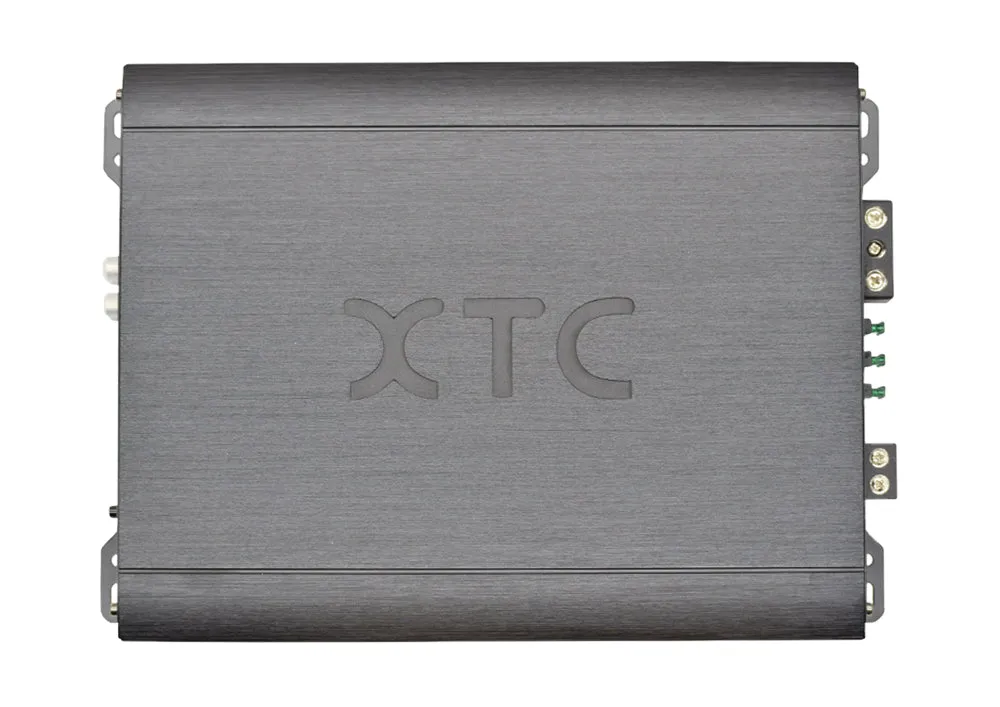

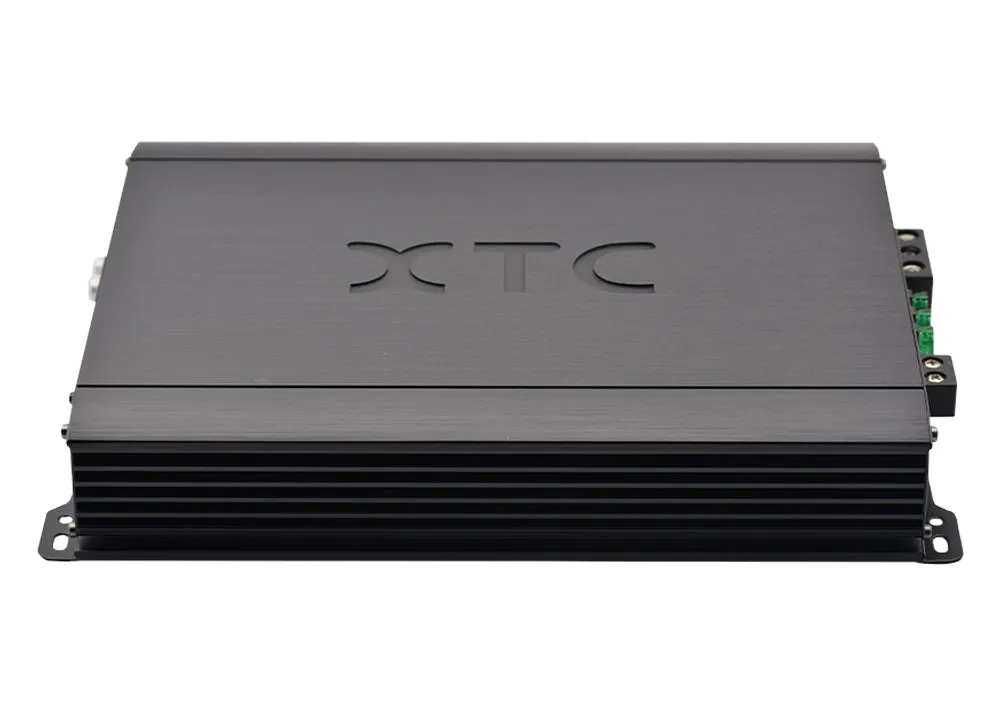

Name: XTC Audio WILDFIRE 12 000W Class D Monoblock Amplifier
SKU: 225338

General Specifications

Digital class D linkable monoblock amplifier

Wired Remote Control Included

IN CAR RMS 1300>@ 1 Ohm

Manufacturer rated RMS 2000 unconfirmed

MOSFET PWM power supply

Double sided through hole epoxy PCB

Stable into 1 Ohm and 2 Ohms parallel amplifier connection availability

24db/oct variable crossover

Variable subsonic filter

Variable bass boost

Variable low pass filter

Variable phase shift

Efficiency: 86%@4 ohms at 100Hz

Multi-way protection circuitry (Thermal / over current / speaker short / speaker DC protection)

RCA line input

Tested voltage & THD: 14.4V & less than 1% THD

Operating voltage: DC10v – 15V power input

Signal to noise ratio: >95db

Low pass frequency crossover: 40Hz – 200Hz

Subsonic filter: 0Hz – 50Hz

Bass boost @ 45Hz: 0 – 12db

Phase shift control: 0 – 180 degree

Frequency response: 10Hz – 200Hz (-3db)

T.H.D @ 4 Ohms: <1%

Efficiency @ 4 Ohms: 86%

Fuse rating: 30A x3

Input sensitivity: 150Mv-5v ( /-5%)
